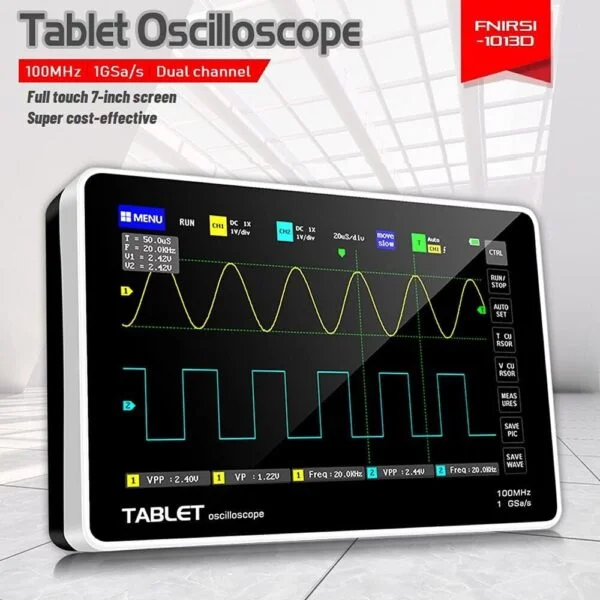

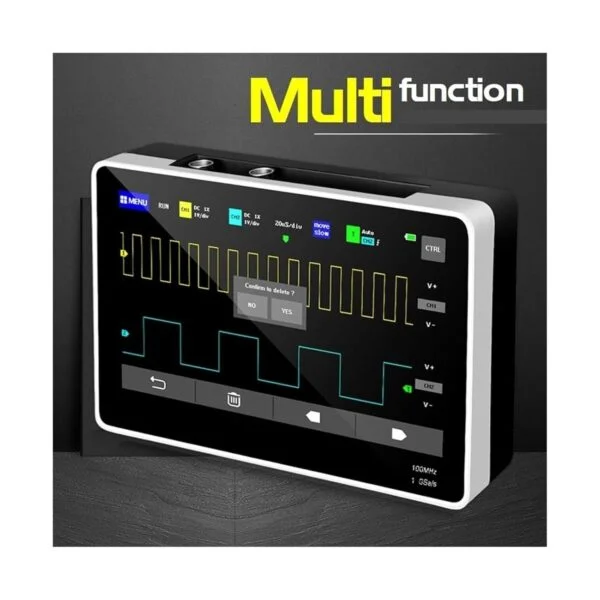

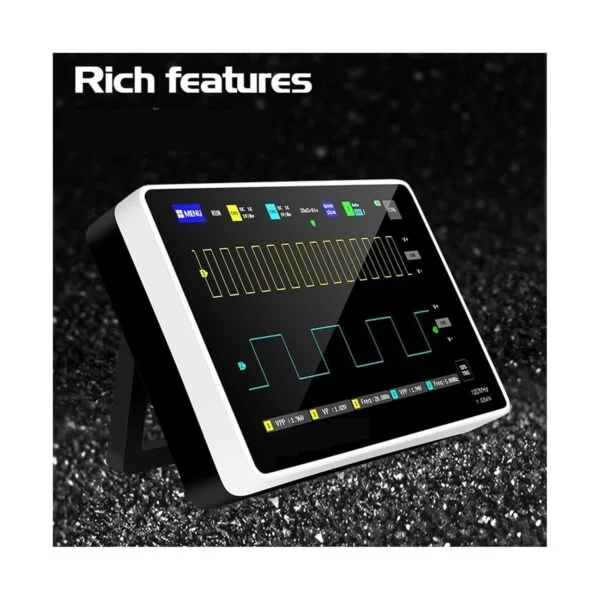

FNIRSI 1013D Digital Oscilloscope

Fnirsi 1013D Digital Oscilloscope dual Channels 100MHz Band Width 1GSa/s Sampling Rate with 7-Inch LCD Screen

• Features:
• Intelligent anti-burn, 1X can withstand up to 400V withstand voltage
• 100MHz analog bandwidth @ 1GSa/s sampling rate（1X = 5MHz，10X = 100MHz）
• Fully fit 7 inches 800 * 480 resolution color TFT LCD with bright colors and high contrast
• Capacitive touching screen, the same as the touching mode of the modern mobile tablet, is not a resistive touching screen with ancient nail operation
• High measurement voltage range, 1X can measure 0~40V, 10X can measure 0~400V，100X can measure 0~4000V
• Up to 12 parameters measurement： VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period
• Cursor measurement function, it is convenient to manually measure the period and frequency, and voltage
• Complete triggering function (single, normal, automatic)
• At any time, the waveform display (pause function) is frozen
• Equipped with high-efficiency One-button AUTO
• One-button waveform storage and screenshot
• Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data
• Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page-turning, deletion, and waveform zooming in, zooming out, moving, etc
• Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis
• Lissajous figure’s graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals
• FFT display function can analyze the spectral characteristics of the signal
• Built-in 6000mAh rechargeable lithium battery, fully charged for 4 hours of continuous use at the highest screen brightness
• Memory compression technology, waveform refresh screen does not flicker
• Screen brightness adjustment
• Background g-r-i-d brightness adjustment
• Ultra-thin, easy to carry

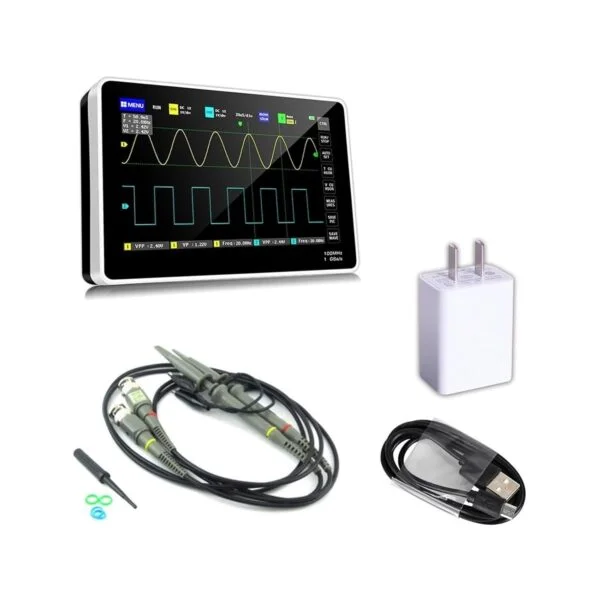

Package includes:

• 1 x 1013D Oscilloscope Host
• 2 x Matching 100MHz Probe (1X and 10X)
• 1 x USB Data Line
