JCID RBOXII Bus Analyzer for Apple Qualcomm RFFE BUS Data Test

JCID RBOX II Bus Analyzer for Apple / Qualcomm Chip Sets RFFE BUS Data Test

Functions:

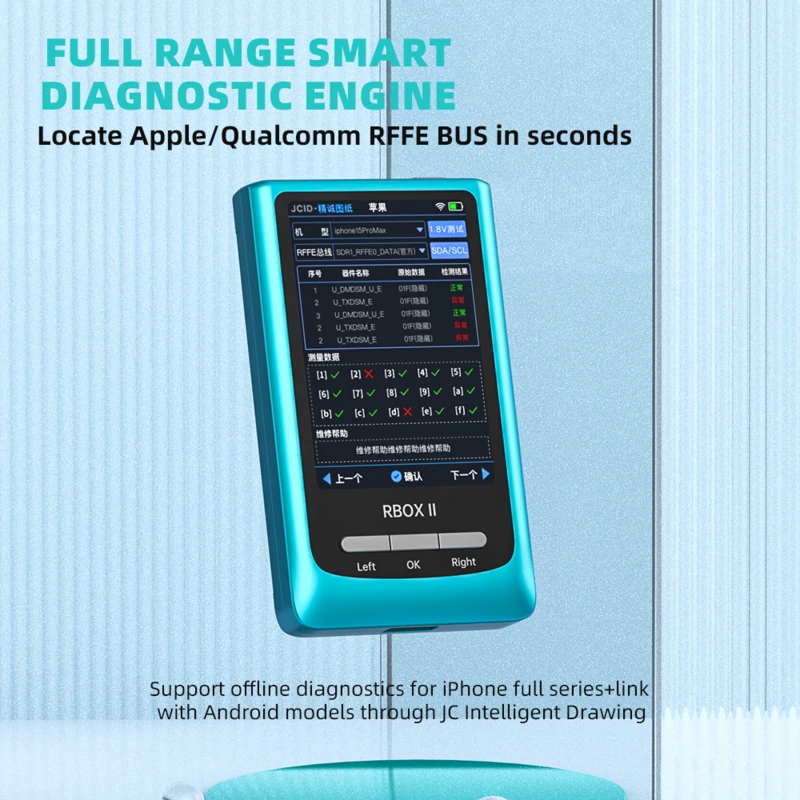

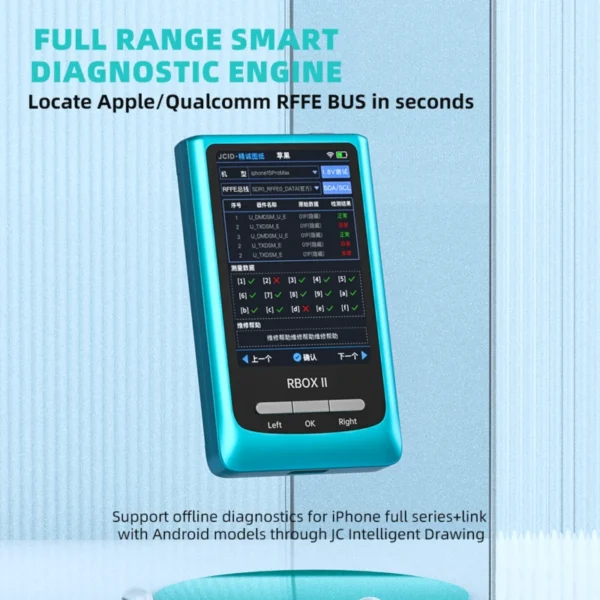

• Locate Apple/Qualcomm RFFE BUS in seconds

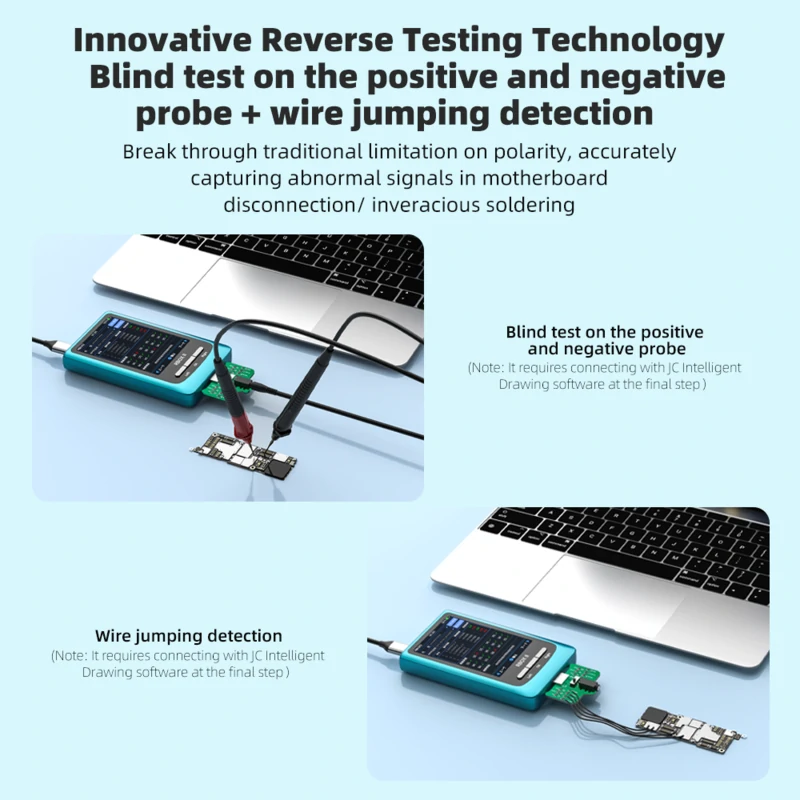

• Blind RFFE BUS test on the positive and negative probe + wire jumping detection

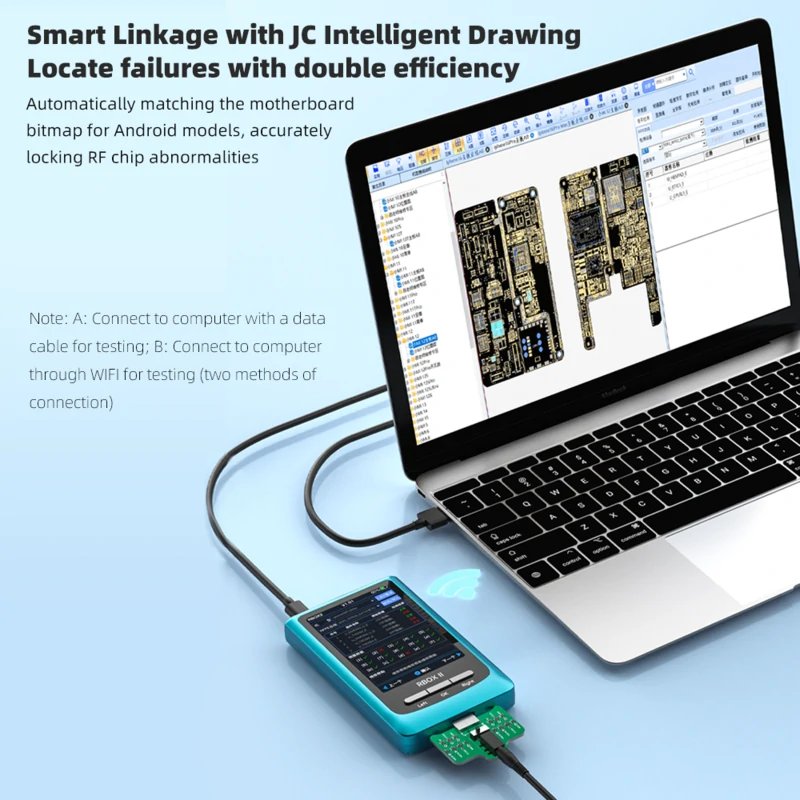

• Support to connect with JC Intelligent Drawing for faults location

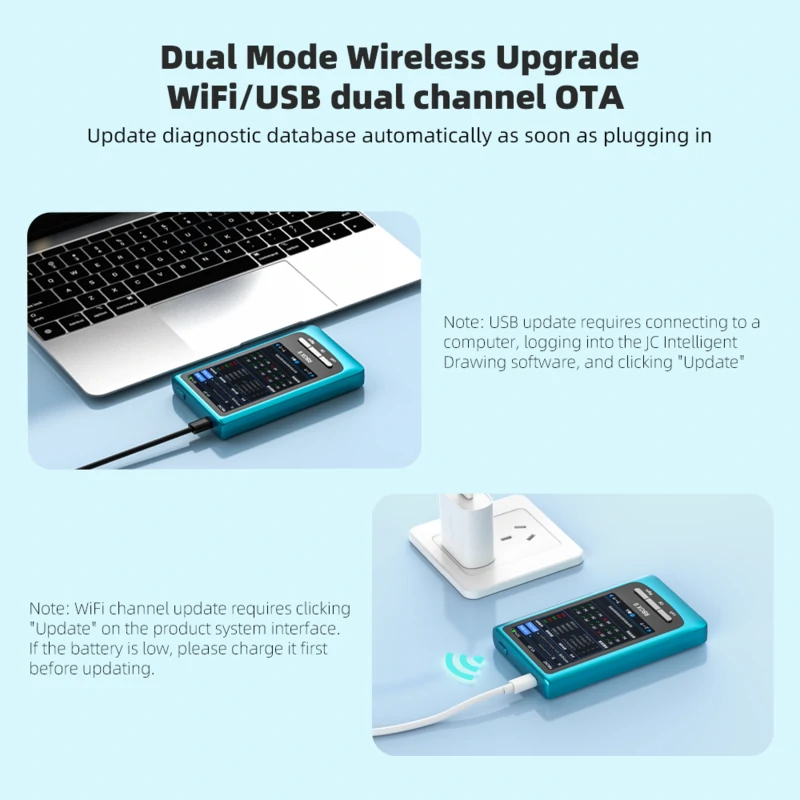

• Dual Mode Wireless Upgrade, WiFi/USB dual channel OTA
• Support offline operation for Apple series RFFE BUS data test

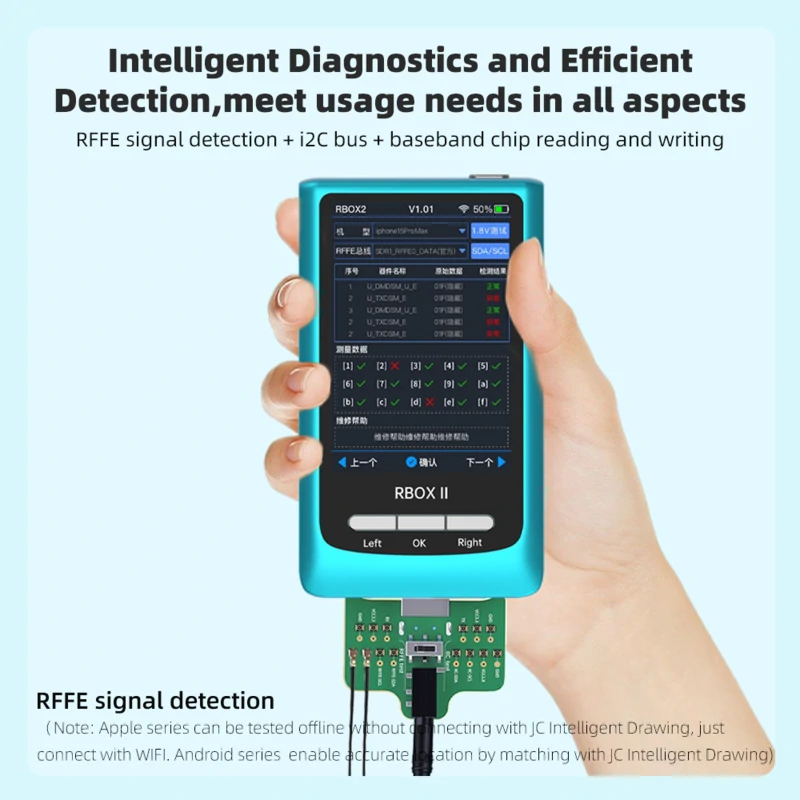

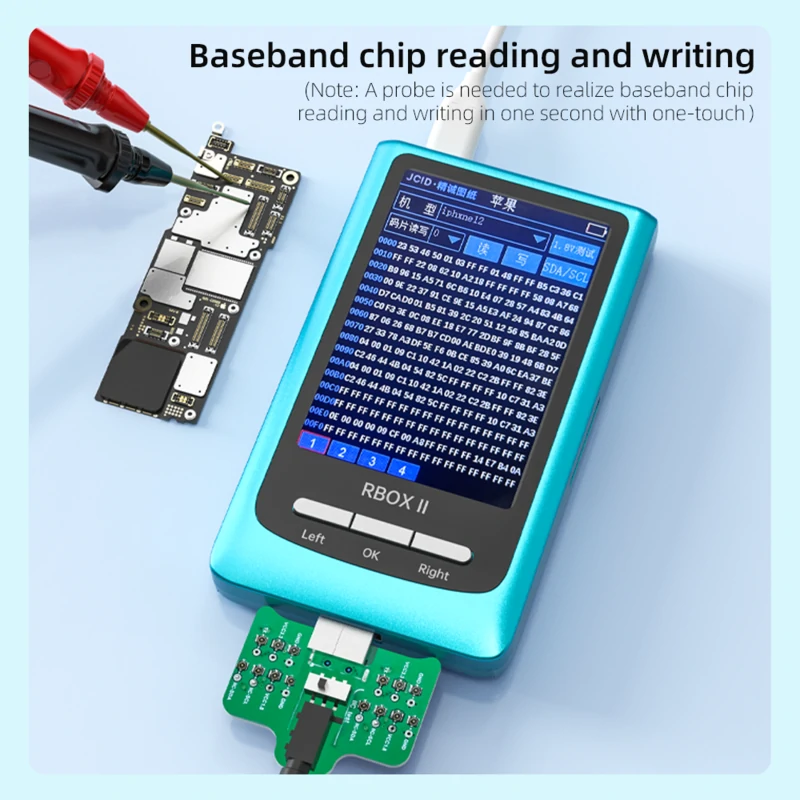

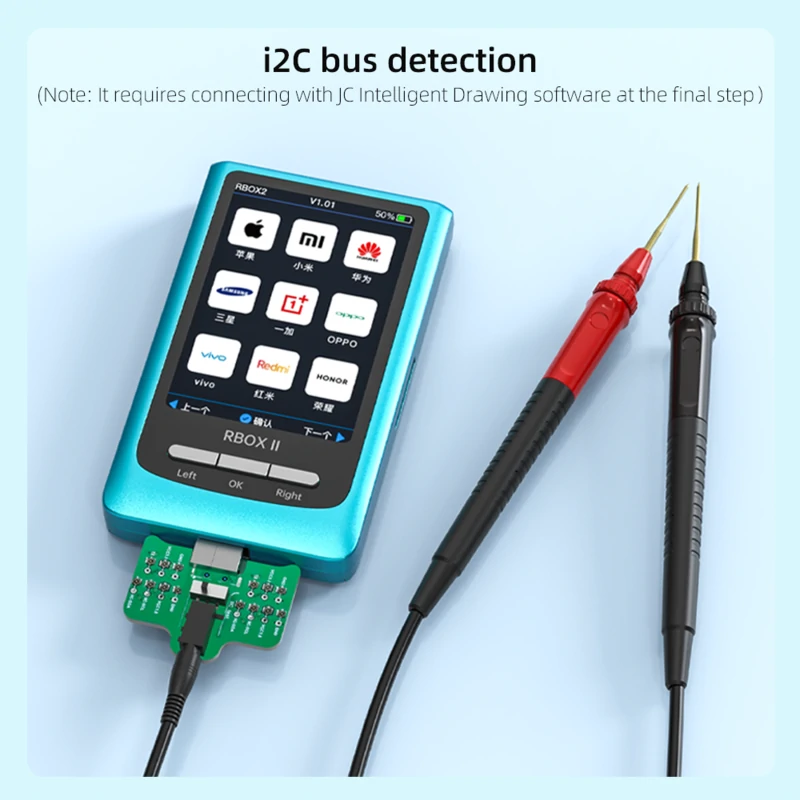

• Support i2C bus detection, baseband chip reading and writing

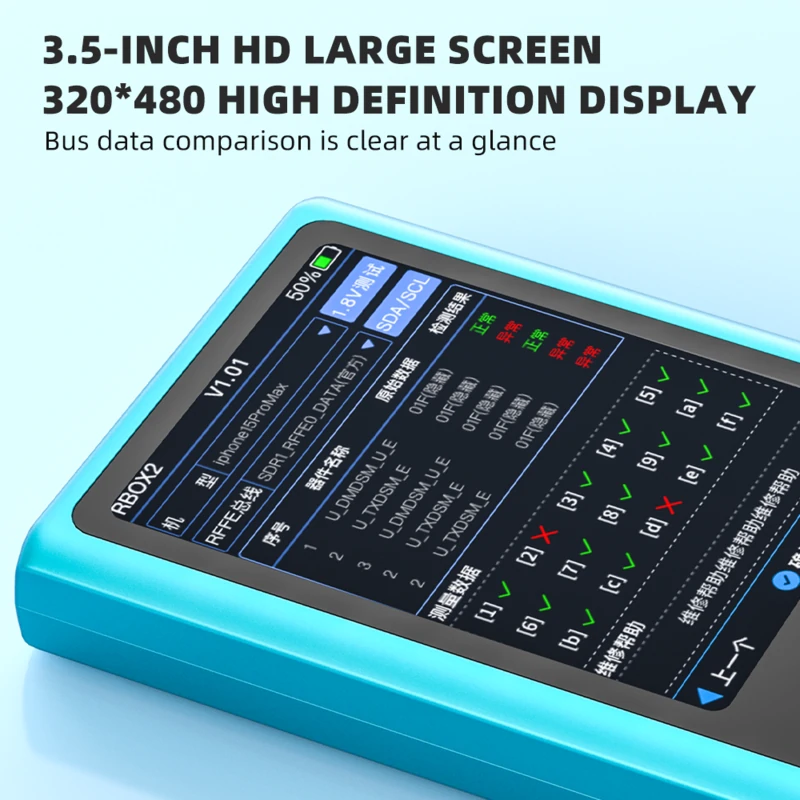

• 3.5inch large screen with 320 * 480 display resolution
• Low power consumption and 12 hours long-lasting endurance
• Add uart electrical level adjustment function, improve the compatibility
• Built in with buzzer, enables button feedback and short circuit alarm

Features:

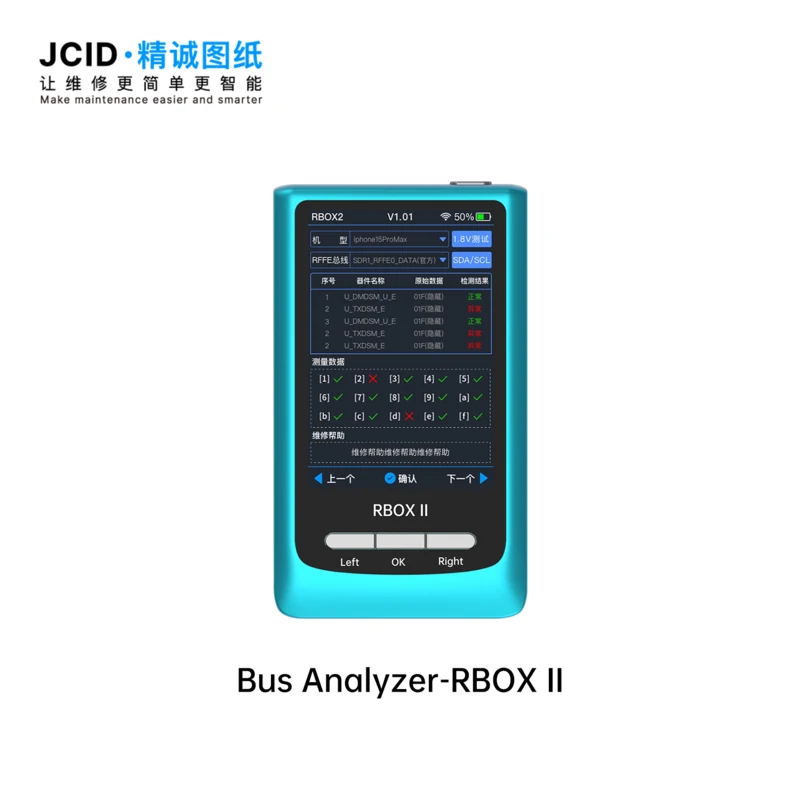

• JCID Intelligent Drawing RBOXII bus analyzer is a compact and convenient device for Apple & Android Qualcomm chipset RFFE bus testing, identify fault points accurately
• Compared with the first generation, RBOX II added uart electrical level adjustment function, improved the compatibility
• It is also built in with buzzer, enables button feedback and short circuit alarm, more stable
• For Apple series, it can fix the problem that the phone has baseband but without serial number
• For Android Qualcomm chipset, it focuses on the problems caused by Qualcomm chipset RFFE bus: Remind to Disable Airplane Mode, turn on the antenna, the wireless device is turned off, can’t search for the operator and other signal failures
• Support offline diagnostics for iPhone full series+link with Android models through JCID Intelligent Drawing

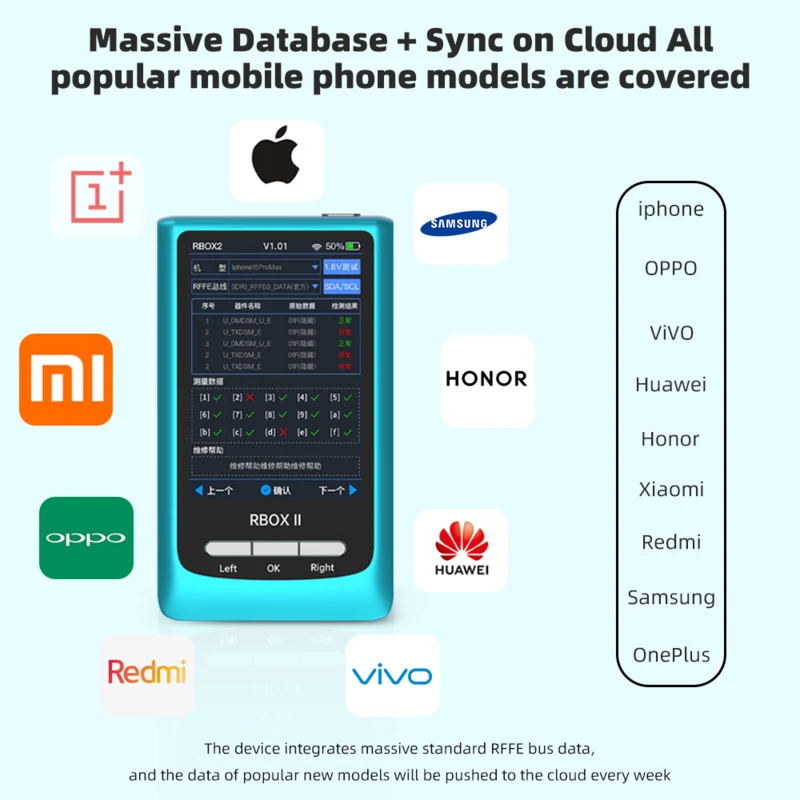

• The device integrates massive standard RFFE bus data, and the data of popular new models will be pushed to the cloud every week
• Break through traditional limitation on polarity, accurately capturing abnormal signals in motherboard disconnection/ inveracious soldering
• Automatically matching the motherboard bitmap for Android models, accurately locking RF chip abnormalities

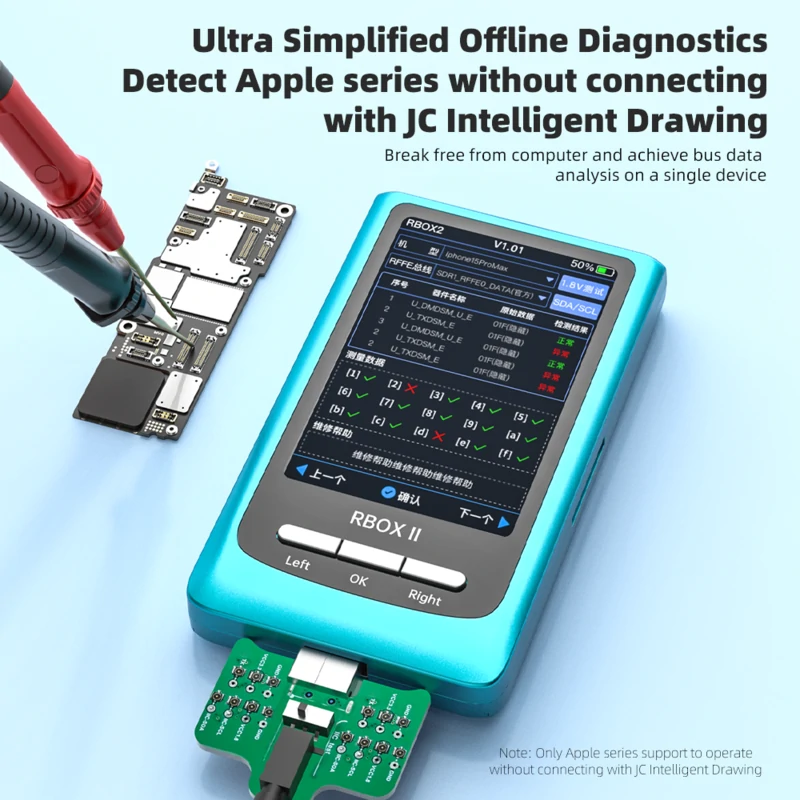

• Detect Apple series without connecting with JCID Intelligent Drawing, breaking free from computer and achieve bus data analysis on a single device

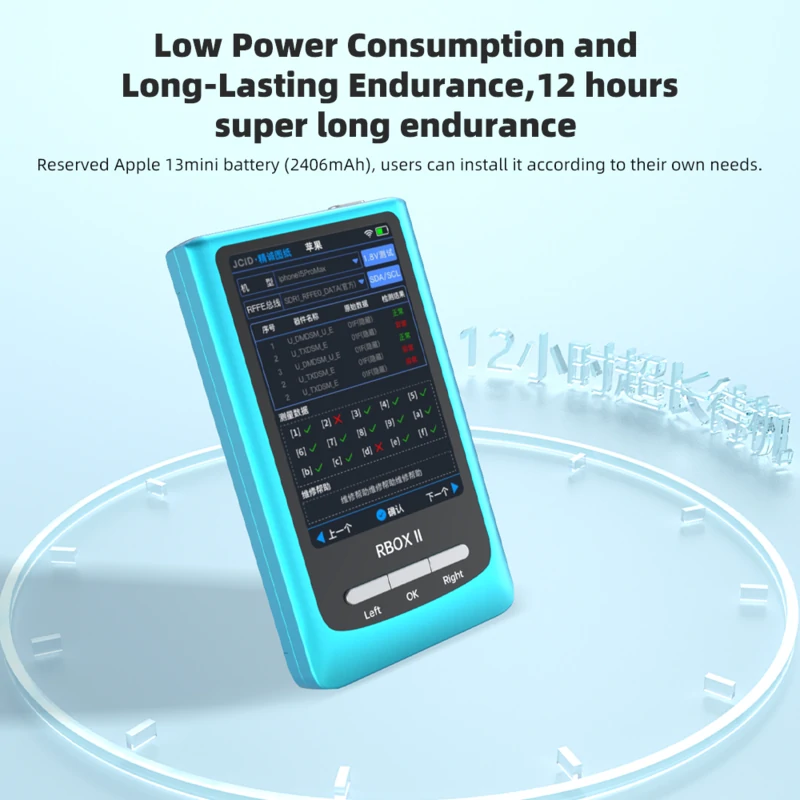

• Reserved Apple 13mini battery (2406mAh), 12 hours super long endurance

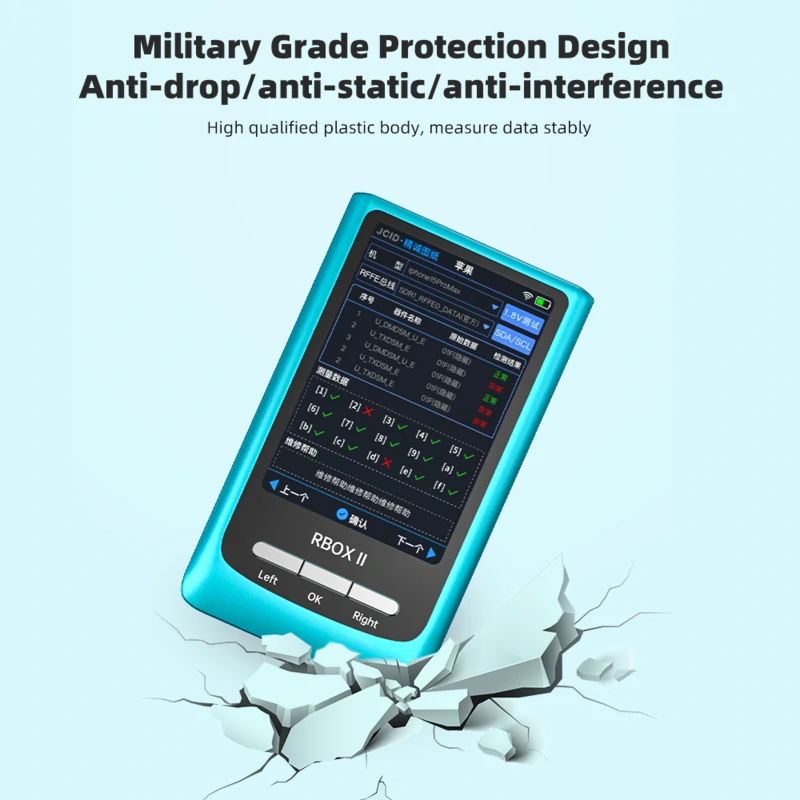

• Anti-drop/anti-static/anti-interference, high qualified plastic body, measure data stably

Package includes:

• 1 x Bus Analyzer
