Mechanic MIC3-B11 Microscope with 0.5x Lens (Blue)

Features:

• High field wide-angle eyepiece, explore, one step forward

• Mic 3 microscope with standard WF10X/25MM high field wide-angle eyepiece, the view is wide and the image is clear, whether it is a mobile phone motherboard, circuit board, or more precise and smaller chips, all you can have a full view

• The high field of view design makes the observation more comfortable and reduces eye fatigue caused by prolonged observation, even more surprising is that the wide-angle eyepiece is designed with the wearer’s needs in mind

• The high-definition coated objective is one of the core advantages of the Mic 3 trinocular stereo microscope, through advanced coating technology, the objective lens can effectively reduce light scattering and improve image contrast and clarity

• Mic 3 microscope adopts the advanced design of variable magnification prism group, realized from 7X to 50X large magnification continuous fixed multiple and gear functions, accurately lock the magnification you need

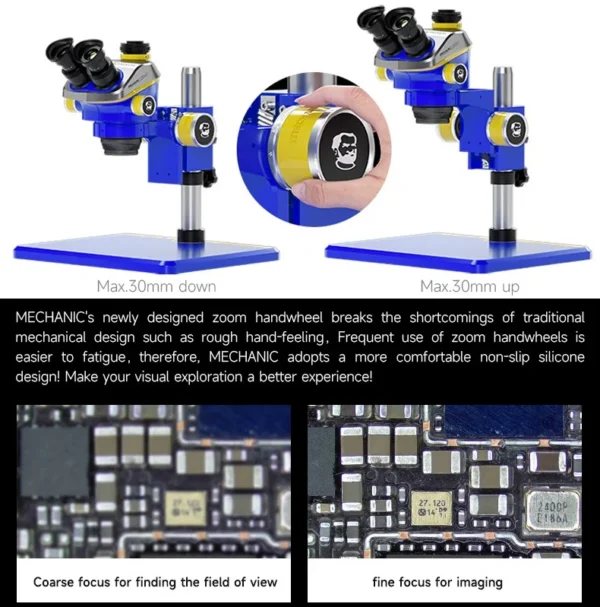

• MECHANIC’s newly designed zoom handwheel breaks the shortcomings of traditional mechanical design such as rough hand-feeling, frequent use of zoom handwheels it easier to fatigue, therefore, MECHANIC adopts a more comfortable non-slip silicone design

• With the Mic3 trinocular microscope with the CTV 0.45X adapter, the imaging effect is significantly improved, this adapter delivers sharper, more detailed images than regular CTV interfaces, more effectively eliminating the phenomenon of dark angle, ensuring that the image is clear and bright across the entire field of view

• In the exquisite technique of microscopic observation, Mic3 trinocular microscope and 4K Pro industrial-grade HD camera (Not includes) perfect combination, bringing you an unprecedented visual experience

• This excellent combination not only allows external HD display, to achieve the synchronization of eye observation and screen display content but also with its high-definition large screen without shadow characteristics, makes the microscopic world visible

• 360° rotation allows you to adjust the microscope’s viewing angle according to your needs, it is easy to deal with whether it is positive observation or site inspection

• Mic3 trinocular microscope has a lifting function, and a lifting range up to 100mm, whether you need to see the details up close or the big picture from a distance, you can adjust the height of the microscope to find the most suitable viewing position for you

Specification:

• Non-adjustable eyepieces: WF 10X/25MM

• Zoom ratio: 1:7.1

• Optional eyepiece: WF10 X22MM / WF15 X15MM / WF20 X10MM

• Not adjustable eyepiece: Standard equipment: WF10X25; high-eyepoint wide-angle eyepiece for the convenience of spectacled observers

• Observation head: 45° inclination, 360° rotation, interpupillary distance 54~76mm bilateral vision adjustment±5 diopters

• Objective: 0.7X-5X continuous zoom, objective zoom ratio 1:7.1 to ensure image surface focus

• Auxiliary objective: 0.5X, 0.7X, 1.5X, 2X are available as options

• Magnification: 7X-50X, optional eyepiece, and auxiliary objective can be expanded to 3.5X-270X, continuous zoom

• Working distance: 100mm

• Focus bracket: The inner diameter is 76mm, and the column bore diameter is 32mm

• Work platform: 320*260mm

• Base: B11 column type large plate base, can be equipped with other bases see the base series diagram for details

Package includes:

• 1 x Microscope Head

• 1 x Microscope Frame

• 2 x WF10 X25MM Eyepiece

• 2 x Flat Angle Eye Mask

• 2 x Silicone Eye Mask

• 2 x Horn Eye Mask

• 1 x CTV 0.45X Adapter(only Mic3)

• 1 x Ring Light

• 1 x Column

• 1 x Limit Block

• 1 x B11 Base
