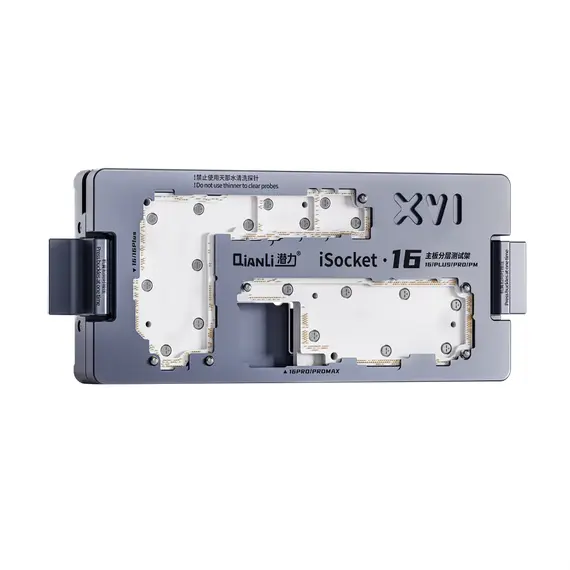

QianLi iSocket For 16 Series Motherboard Layered Test Fixture

• QianLi iSocket 16E motherboard layered test frame, easily solves the troublesome problem of motherboard testing, insists on using BeCu spring probes, applicable to iPhone 16e
• Compatible with mobile phone models, based on many years of rich experience in test frame products

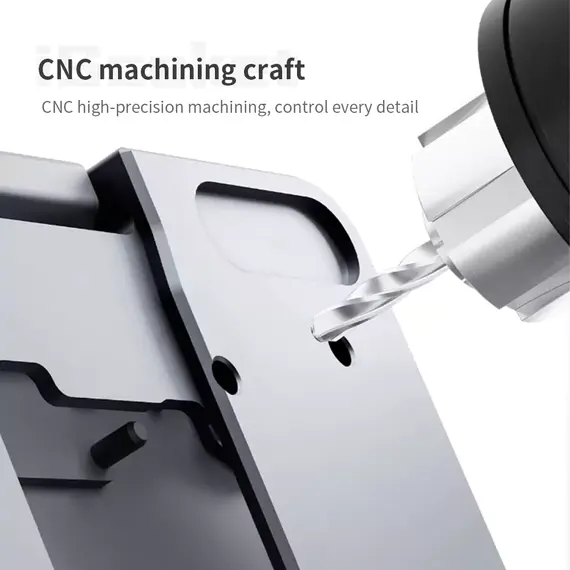

• CNC high-precision machining controls every detail
• The double-headed probe accurately aligns the small holes to improve the contact performance, fastens with fixed buckles, so  the motherboard will not warp, and the test data is more accurate

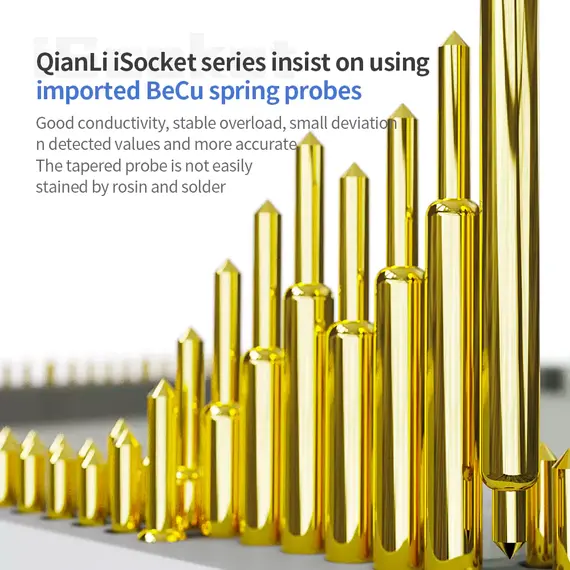

• With good conductivity, stable overload, small deviation in detected values, and more accuracy, the tapered probe is not easily stained by rosin and solder

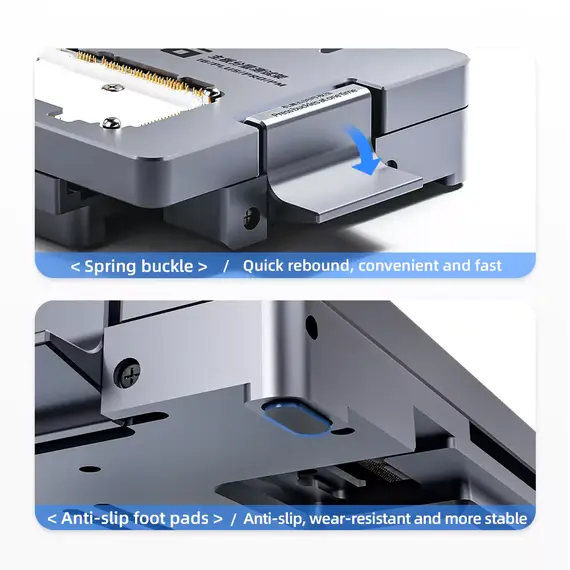

• Spring buckle, quick rebound, convenient and fast
• Anti-slip foot pads, anti-slip, wear-resistant and more stable

Steps:

• Place the lower motherboard at the base of the test stand
• Fasten the pin board above the lower motherboard
• Place the upper motherboard and buckle it on the pinboard
• Fasten the two wings of the upper cover of the test stand and connect the power supply and screen to start testing

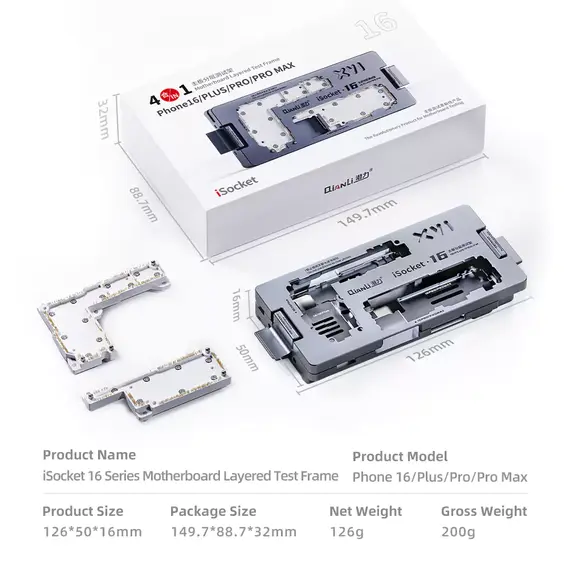

Package includes:

• 1 x Test Platform

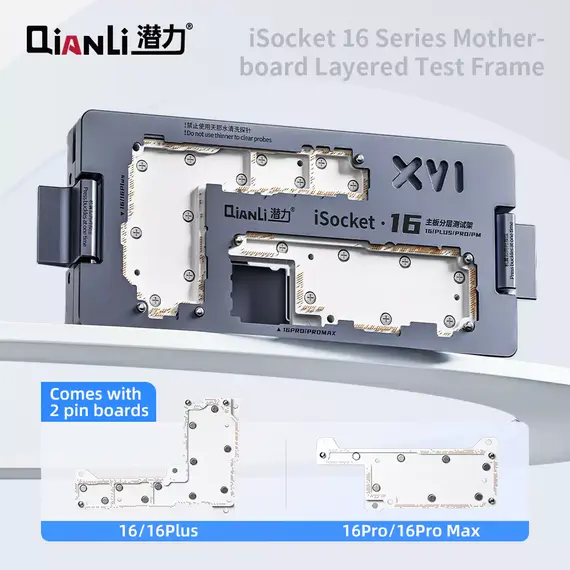

• 2 x Pinboard
