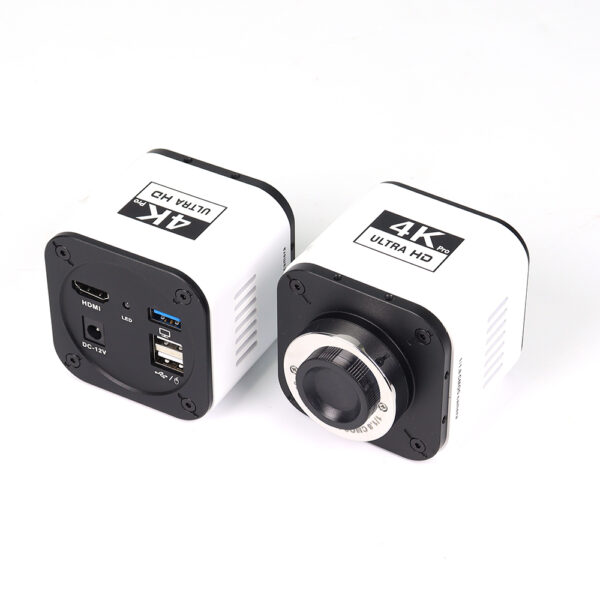

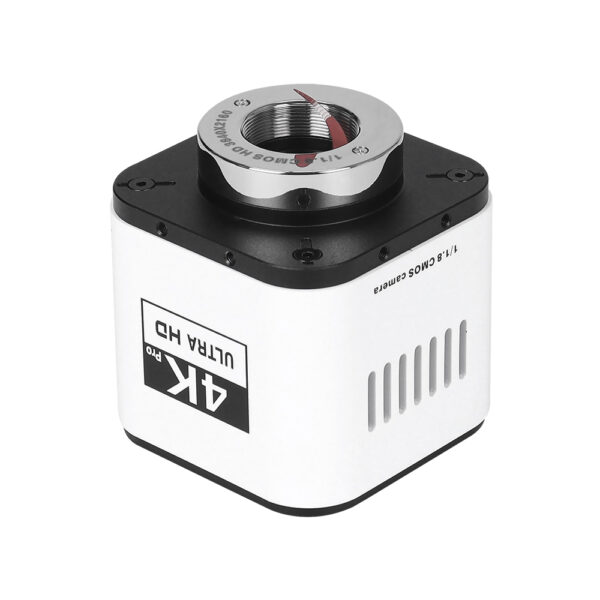

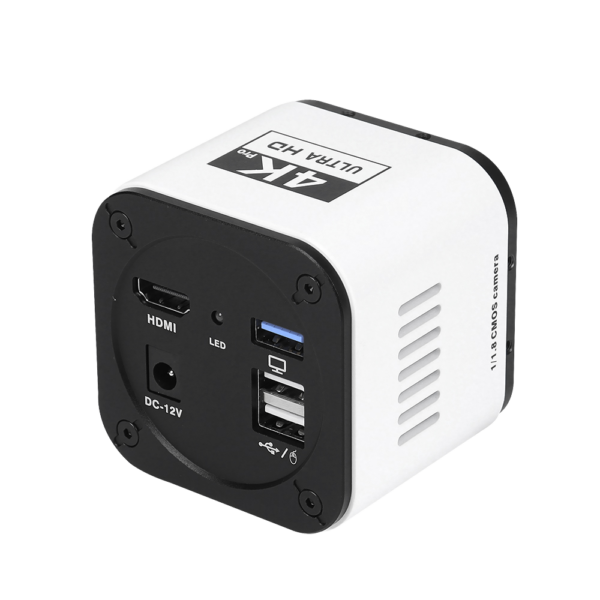

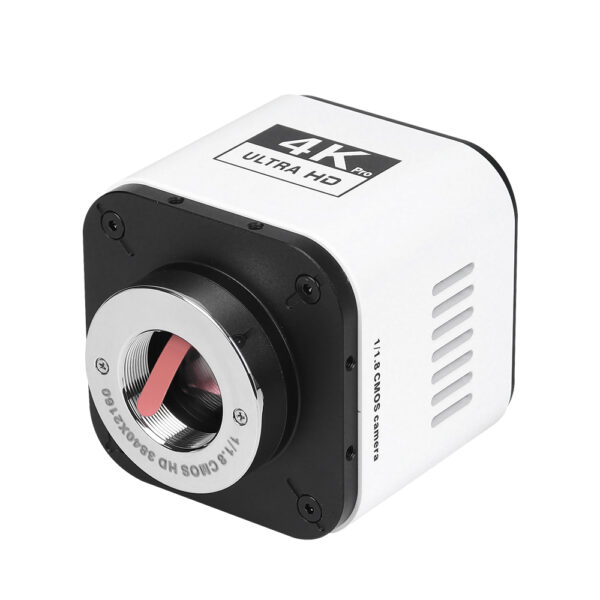

SONY 4KHU Pro Industrial HD 4K 60FPS Digital Camera
Features:
- True 4K Ultra HD Sensor: Equipped with a high-performance SONY CMOS image sensor, delivering brilliant 3840×2160P ultra-high-definition imaging for crisp, clear micro-soldering and chip inspection.
- Smooth 60FPS Refresh Rate: Supports ultra-smooth 4K output at 60 frames per second (FPS), completely eliminating lag, ghosting, and motion blur during real-time board work and component adjustment.
- Dual Simultaneous Output (HDMI + UVC): Feature-rich HDMI and USB (UVC) synchronous output allows you to display live footage on an HD monitor and a computer at the exact same time—ideal for training, recording, and multi-screen diagnostic workflows.
- Built-in Smart Measurement System: Features an integrated, computer-free on-screen measurement engine. Instantly calculate lines, circles, angles, and distances directly using a connected USB mouse.
- Intuitive Circular UI Menu: Easily control snapshot capture, video recording, digital playback, and real-time zoom functions via a clean, user-friendly on-screen overlay menu.
- Advanced Visual Controls: Fully adjustable digital zoom, horizontal/vertical screen mirroring, freeze-frame, and split-screen comparison mode (Dual/Quad display) to reference active work against clean board layouts.
- Professional Grade Image Adjustments: Supports automatic/manual exposure modes, precise one-button white balance correction (with independent Red, Green, and Blue manual sliders), and customizable crosshair grids (up to 8 horizontal and 8 vertical alignment lines).
- Wide Microscope Compatibility: Standard industrial C/CS mount threading ensures seamless connectivity with all popular trinocular stereo microscopes, metallurgical setups, and biological inspection stations.

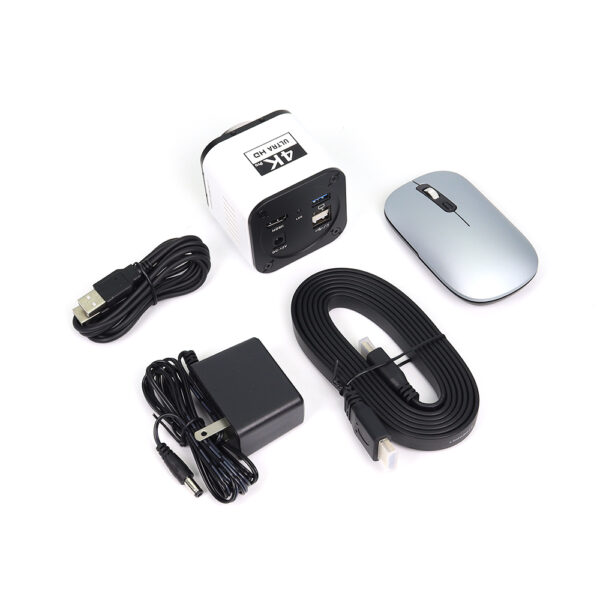

Package Includes:
- 1 x SONY 4KHU Pro 4K Industrial Microscope Camera
- 1 x DC 12V Power Supply Adapter
- 1 x High-Speed HDMI Cable
- 1 x USB Connection Cable
- 1 x Wireless/Wired Controller Mouse (for on-screen menu operation and measurement)
- 1 x Protective Storage Box
