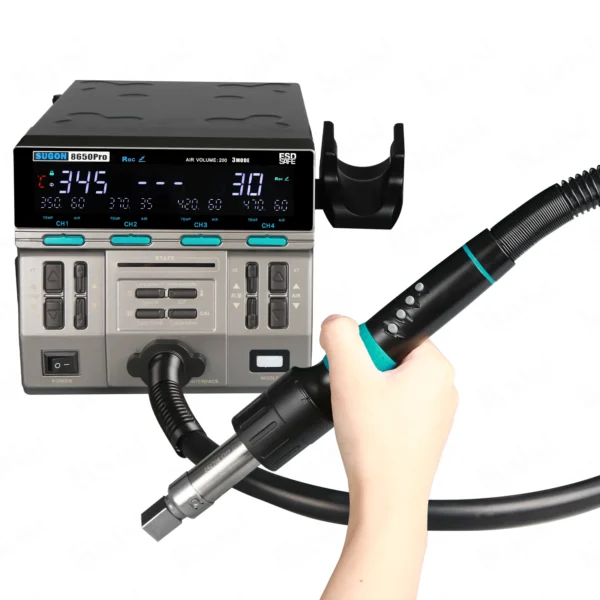

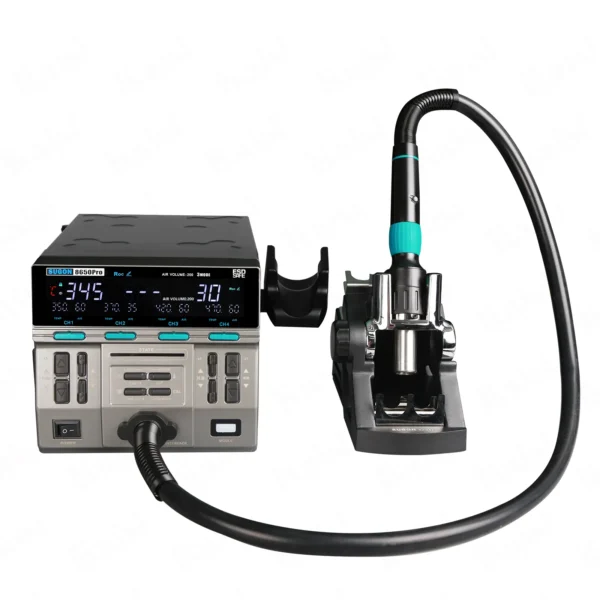

Sugon 8650Pro Curve Edition 1300W Intelligent Digital Hot Air Gun BGA Desoldering Rework Station

Sugon 8650Pro Curve Edition 1300W Intelligent Digital Hot Air Gun BGA Desoldering Rework Station

Features:

• Compared with 8650, the appearance of the host is the same, and the ROC curve identifier is added to the plane version
• In terms of function, the soft mode is canceled, the curve heating function is added, and the general mode and high-speed mode are retained
• Preset 3 groups of working interval, each group can be free to set the preheating temperature and heating time, each group of temperature reaches the preset temperature automatically into the working mode of the first group, when the third group of temperature reaches, the machine beeps, then the welding operation can be carried out
• After entering the ROC curve mode, the machine panel will display the current stage, real-time temperature, air volume, and working countdown, and automatically jump to the next stage after the completion of each stage until the three stages of heating are completed
• Since the first and second sections are preheating, it is only necessary to set the temperature air volume of the third section, and the temperature air volume of each section can be freely set, and the longest working time is 330 seconds
• Upgrade the new wind gun handle, the appearance of the work and the original has a larger upgrade, the key is smaller, in the original 4 groups of working memory based on retaining the new wire control function
• In curve mode, CH1/CH2 is used to set the temperature, CH3/CH4 is used to set the air volume, and the cold air button is used to open the curve mode. Hold down the button for 3 seconds to restore the cold air function.
• The upgraded version of the knob heating core, with no screw fixing, or hand twisting can be unlocked and replaced, with the standard 7A, and 11B heating cores each.
• Add a 15*15mm, 15*17mm wind nozzle each, with a special wind gun frame, welding motherboard more accurate and convenient.
• Upgrade the 252 bracket with one more front plug than the 251

Specification:

• Power: 1300W (Max)
• Input voltage: AC 110V~220V 50Hz~60Hz
• Temperature range: 100℃-550℃/212°F-1022°F
• Air volume range: 0-200
• Operating time of ROC mode: There are three segments each 330 seconds long

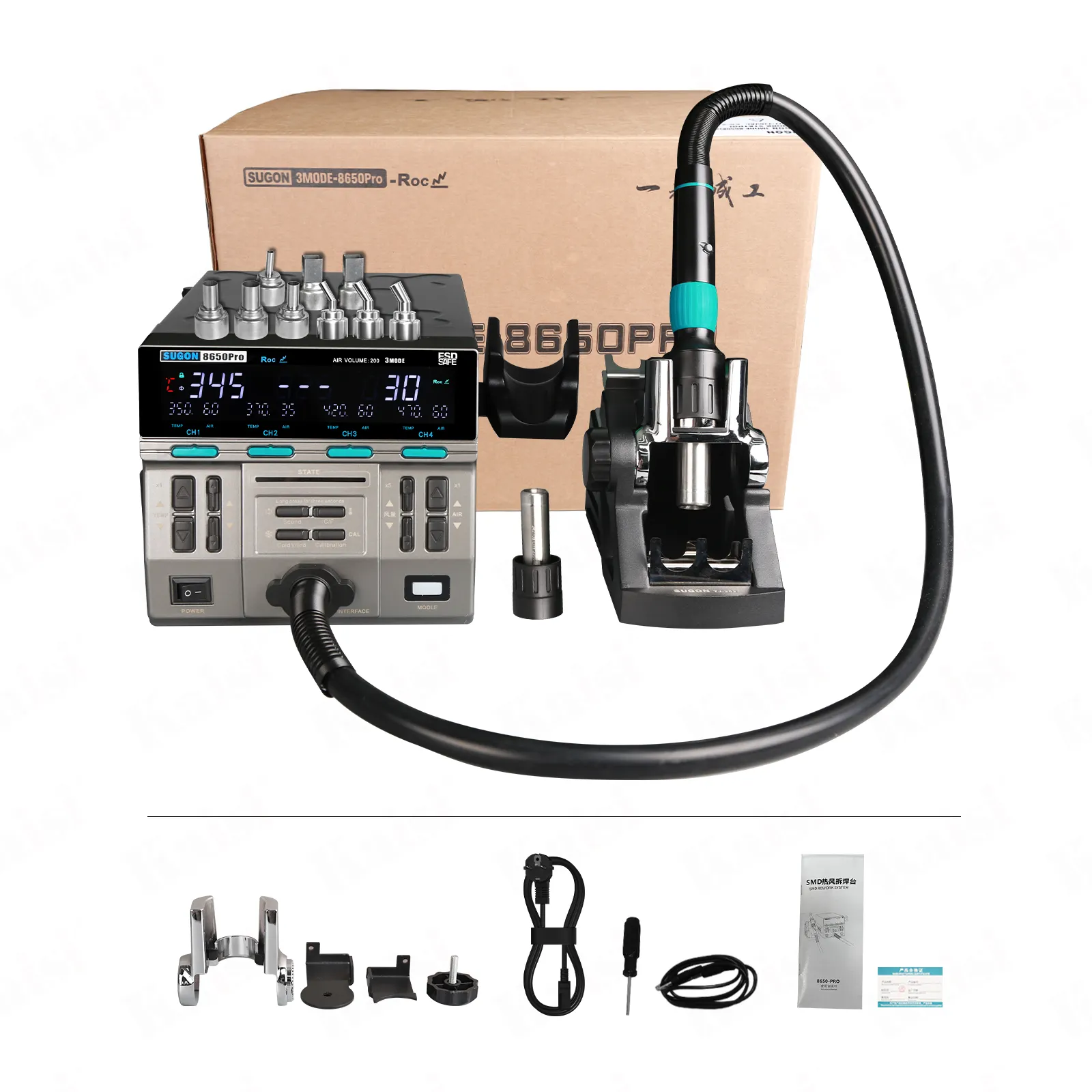

Package includes:

• 1 x Desoldering Rework Station
• 9 x Wind Nozzles
• 1 x 252 Bracket
• 2 x Wind Bozzle Gasket
• 1 x Power Cord
