SUNSHINE SS-916 Ultra Charging Activation Board

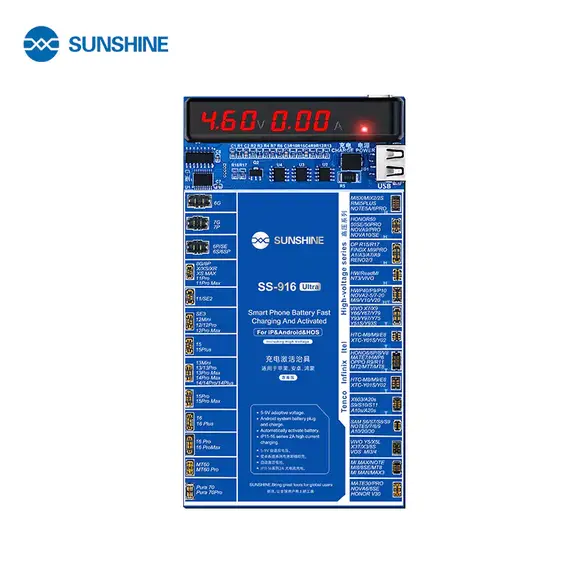

Sunshine SS-916 Ultra Digital Display Charging Activation Board for iPhone 6 to 16Pro Max & Android

Features:

• SS-916 Ultra charging activation fixture, supports iPhone 6-16 series, Android system battery plug and charge, 5-9V adaptive voltage
• Adjust the power supply to 9V to support 9V battery charging without manual setting
• The automatic identification circuit will automatically adjust the output voltage and current according to the positive and negative poles of the battery, automatic high current fast charging

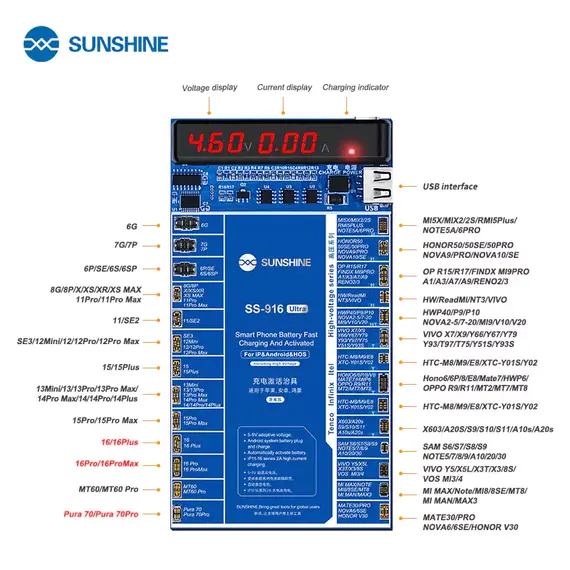

• Compatible with iPhone/Android, 27 commonly used sockets, the same battery holder can be buckled and used, suitable for Android (including Transsion series) 500+models / iPhone 6G to 16Pro Max full series, more applicable
• No external power supply is required, just plug in the battery to check the voltage; accurately detect the real-time output voltage and current values of the activation board, and measure the empty/load voltage of the USB-powered device
• When the battery is fully charged, the circuit will determine whether the battery is fully charged, and automatically cut off the power supply, and the red light will turn into a blue light to prevent damage to the battery due to overcharging
• Connect the power supply, click the number to activate charging (The light on the small board will light up when the battery is clicked), when charging, first adjust the power meter to 3V voltage (If the power meter is directly 5V, the meter will be protected) and slowly increase the voltage to 5V
• One-touch battery activation/voltage detection/short circuit protection/upgraded high-current intelligent fast charging IC
• High-power overload protection, the protection current does not exceed 2A. When high voltage is connected, the protection board will automatically cut off the power supply to avoid loss, and normal operation can be restored after 1 minute
• During the repair of mobile phones, power can be connected through USB, and the voltage and current of the charger can be accurately detected. The voltage of the USB power supply device when it is empty/loaded, and the load current of the USB terminal device when it is working can be measured

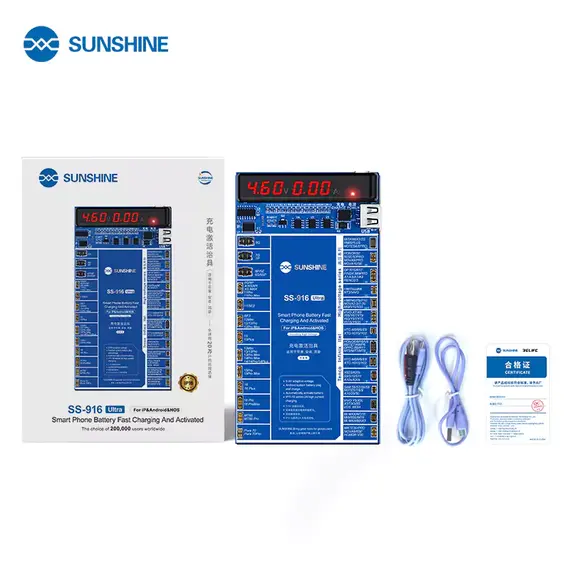

Package includes:

• 1 x Activation Board
• 2 x Cable
